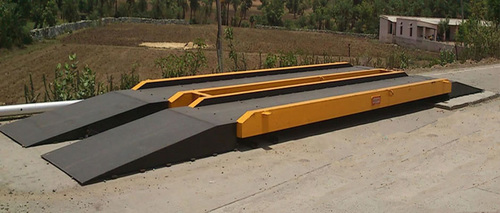

Mobile Weighbridge

Mobile Weighbridge
Mobile Weighbridge
Product Code : 01
Product Description

In the year 2006 our company was inaugurated as a leading manufacturer and exporter of Mobile Weighbridge. It is manufactured by making use of quality tested materials and advanced technology. It can operate reliably over a wide temperature range and also in humid weather. This is a specially designed weighbridge with digital load cells. Use of pre-calibrated digital load cells enables fast installation, service support thus increasing overall productivity and reduction in downtime. Furthermore, our esteemed customers can avail this Mobile Weighbridge from us at market leading prices.

Features:

  • Excellent performance
  • Less maintenance
  • Easy to operate

Hardware Features

  • 32 bit ARM processor
  • Front mount 16x2 LCD display & 1 inch LED display
  • SMPS power supply
  • On board memory to save 2 Lac records
  • USB ports for Standard computer keyboard & pen drive
  • Centronics port for 80 column Dot matrix Printer
  • RS232 port for display/GSM modem/continuous weight transmission
  • Table top port for connecting external wired displays
  • Inbuilt wireless trans - receiver (Optional)

Software Features “Installation privilege”

  • Initial LCD display message field settable as weighbridge name
  • Installation settings secured under engineer login
  • Engineer login password field settable by authorised OEM
  • Three types of cornering features available
  • Smart Calibration
  • Multi-step smart calibration
  • Installation report
  • Mandi Application feature of Rate, Amount, Binding material deduction etc.

Intelligent Terminal (IT) Features

  • Long Distance between weighbridge room and structure
  • Lower division size can be obtained, leading to higher accuracy of scale
  • Special DLC interlocking
  • Field settable number of load cells, up to 16
  • Simple and fast Installation
  • No need of manual cornering using trim ports & calibration with test weights.
  • Automatic fault diagnosis with warning of particular DLC
  • Installation report

Salient Features

  • Available to work with pre-calibrated Digital Load Cells
  • Configuration Upload/download through pen drive
  • Maximum Utilisable Memory, field selectable up to2 Lac
  • Barr Overloading feature especially useful for industries.
  • Memory Status Display
  • Field setting option for Vehicle wise working.
  • USB port for pen drive connectivity (data in .xls format)
  • SMS provision
  • Field settable pre-printed stationary
  • Mandi Application features

Software Features “Weighbridge privilege”

  • Simple process for weighments of Tare/ Gross Vehicle weights
  • 10 entries in ticket for 25 characters each
  • 4 code banks for 100 codes each( Flexibility of setting)
  • Field settable header, footer, signature lines
  • Facility to view/print earlier saved records according to RST no/ Vehicle no
  • Multiple report option all/summary/filtered/serial no. wise/date wise/time wise
  • Dumping of report into pen drive to avail softcopy of records (.xls)
  • Field settable Pre-printed tickets
  • SMS feature in 3 different ways
  • Net weight printing in words
  • Mandi Application feature of Rate, Amount, Binding material deduction etc.

Optional Features

  • Confidential Report
  • Inbuilt wireless for connecting wireless accessories (Junction Box, Extra Display)
  • LED display

Key features

  • Corner correction not required*
  • No Calibration required
  • No signal attenuation from external environment
  • Better Accuracy
  • Long Distance signal communication between weighbridge room and structure (Up to 200 meter)
  • Built In Surge protection
  • Superior finish with superior Orange cable
  • No chance of Signals manipulation
  • Very simple & easy installation procedure
  • Easy field replace ability
  • Cost Effective
  • Rated capacity 30Ton
  • Protection Class IP68
Capacity Accuracy Size
40 MT/50 MT/60 MT 5/10 Kg 7.5 Meter X 3 Meter
40 MT/50 MT/60 MT 5/10 Kg 9 Meter X 3 Meter
50 MT/60 MT/80 MT 5/10 Kg 12 Meter X 3 Meter
60 MT/80 MT/100 MT 5/10 Kg 15 Meter X 3 Meter
60 MT/80 MT/100 MT 5/10 Kg 16 Meter X 3 Meter
60 MT/80 MT/100 MT 5/10 Kg 18 Meter X 3 Meter
100 MT 5/10 Kg 20 Meter X 3 Meter
