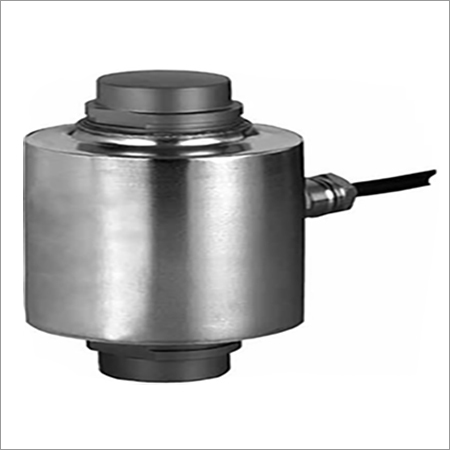

Compression Type Digital Load Cell

Compression Type Digital Load Cell
Compression Type Digital Load Cell
Product Code : 23
Product Description

We are a reputed organization in this domain, engaged in offering high quality Compression Type Digital Load Cell. This is  is used to create an electrical signal whose magnitude is directly proportional to the force being measured. It is basically a device that measures strain and then converts force into electric energy which serves as measurement for scientists and workers. In addition, this Compression Type Digital Load Cell is manufactured using quality assured materials with the help of latest technology.

Features:

  • Hassle free performance
  • Less energy consumption
  • Low maintenance
  • Capacities of 30, 40 and 50 t
  • Stainless steel construction
  • Environmental Protection IP68 with complete hermetic sealing
  • Self-restoring design
  • Digital load cell with built-in microcontroller and A/D conversion
  • Easy communication (RS485) and fast system setup
  • Improved handling of corner adjustment, system calibration, fault finding and load cell replacement

Approvals

  • OIML approval to C3 and C4 (Y = 15 000)

Application

  • Weighbridges, hoppers, tanks and silos

Packed Weight

  • Capacity (t) 30 40 50
  • Weight (kg) 3.3 3.6 4.5

Option

  • Integrated surge protectors

Available Accessories

  • Compatible range of applications hardware
  • Compatible range of electronics

Wiring

  • The load cell is provided with a 3x twisted pair cable (AWG 24)
  • and shield according DIN 47 100
  • Cable length: 18 m
  • Cable diameter: 7.4 mm
  • The shield is connected to the load cell body

Technical Specifications

Maximum capacity (Emax ) t 30 / 40 / 50
Accuracy class according to OIML R60
(GP) C1 C3 C4
Maximum number of verification intervals (nLC)
n.a. 1000 3000 4000
Minimum load cell verification interval (vmin )
n.a. Emax /5000 Emax /15000
Temperature effect on minimum dead load output (TC0) %*RO/10°C ± 0.0400 ± 0.0280 ± 0.0093
Temperature effect on sensitivity (TCRO) %*RO/10°C ± 0.0200 ± 0.0160 ± 0.0100 ± 0.0080
Combined error %*RO ± 0.0500 ± 0.0300 ± 0.0200 ± 0.0180
Non-linearity %*RO ± 0.0400 ± 0.0300 ± 0.0166 ± 0.0125
Hysteresis %*RO ± 0.0400 ± 0.0300 ± 0.0166 ± 0.0125
Creep error (30 minutes) / DR %*RO ± 0.0600 ± 0.0490 ± 0.0166 ± 0.0125
Rated Output (RO) Rated Output (RO) 200 000 ± 200 (± 0.1%*RO)
Zero balance counts ± 2 000 (± 1%*RO)
Internal resolution counts 550000
Excitation voltage V 9....12
Current consumption mA 40
Converter type
Sigma-Delta ratio metric
Conversion rate
5 Hz (3 to 80 Hertz, factory configuration only)
Digital filter
FIR automatically adjusted to conversion rate plus Rolling Average (1, 2, 4, 8, 16, 32 samples) post filtering
Asynchrone interface
RS485A half-duplex, multidrop with network address, 2400...38400 baud Baud rate, data bits, parity and data output are programmable
Number of bus addresses
32
Safe load limit (Elim) %*Emax 200
Ultimate load %*Emax 300
Compensated temperature range ℃ -10.....+40
Operating temperature range ℃ -40.....+60
Load cell material
Stainless steel 17-4 PH (1.4548)
Sealing
Protection according EN 60 529

Note : The limits for Non-Linearity, Hysteresis, and TCRO are typical values. The sum of Non-linearity, Hysteresis and TCRO meets the requirements according to OIML R60 with pLC=0.7.

Type H1 H2 H3 H4 H5 H6 H7 H8 D1 D2 Smax* RF**
RC3D-30 t / 40 t 150 75 31 33 13 11.7 39 84 39 81 12 27 kN
RC3D-50 t 178 89 32 34 17 8.5 44 94 44 99 9 51 kN

Note : Specifications and dimensions are subject to change without notice.
