Axle Weighing System

Axle Weighing System
Axle Weighing System
Product Code : 15
Product Description

Axle Weighing System

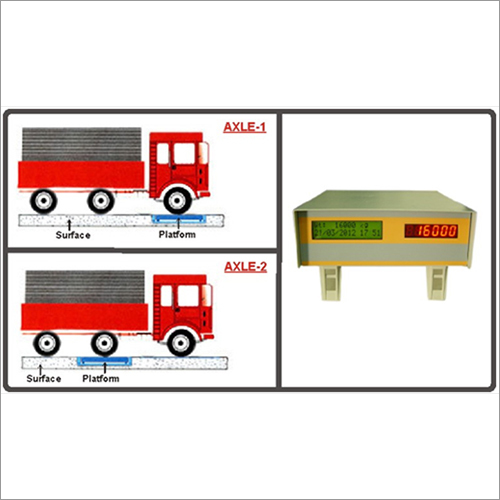

In this application a small platform structure with less capacity is used to weigh a multi Axle long & heavy vehicle. Each Axle of the vehicle comes in the platform and stop then its weight is recorded in the indicator. This way the weight of complete vehicle is done.


  • Multiple Axles of a vehicle can be weight one by one separately. (Up to 9 Axle can be weight).
  • The weight details of each Axle will be mention separately in the ticket.
  • Tare and Gross weight of vehicle will be done through the same process & its details will be mention separately
  • The final weight of vehicle will be the sum of weight of each Axle.


  • Small Platform Size - A small platform size of 1m x 3m or 2m x 3m can be used for weighing a multi Axle vehicle.
  • Low Capacity Structure - A structure with capacity of 20 ton or 30 ton can be used for weighing a vehicle of 100 tons.
  • Application - This is a useful application for Stone Crasher, Sugarcane weighing or installing a temporary / portable weighbridge at any remote location.

NOTE :- This is useful where high accuracy is not required. The accuracy can vary up to 10 division size. The accuracy will totally depend on the structural formation and surface. There should not be any slope / inclination in the surface where vehicle stands in the platform.
